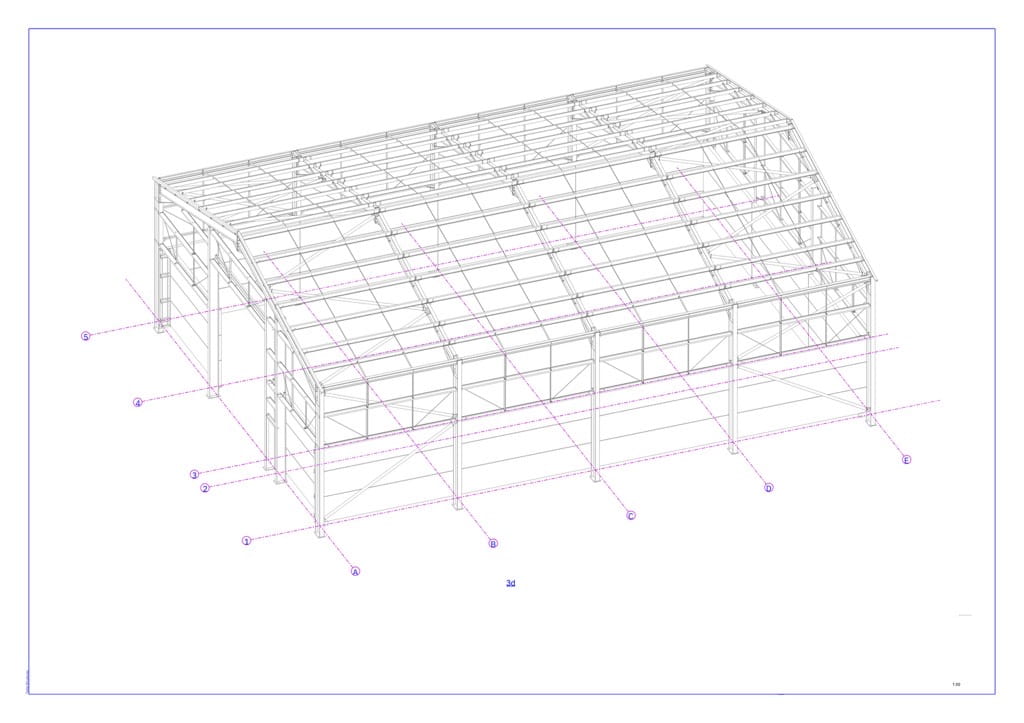

80′ x 60′ Grain Store

* Please note building specifications may have to change depending on your location and local weather conditions.

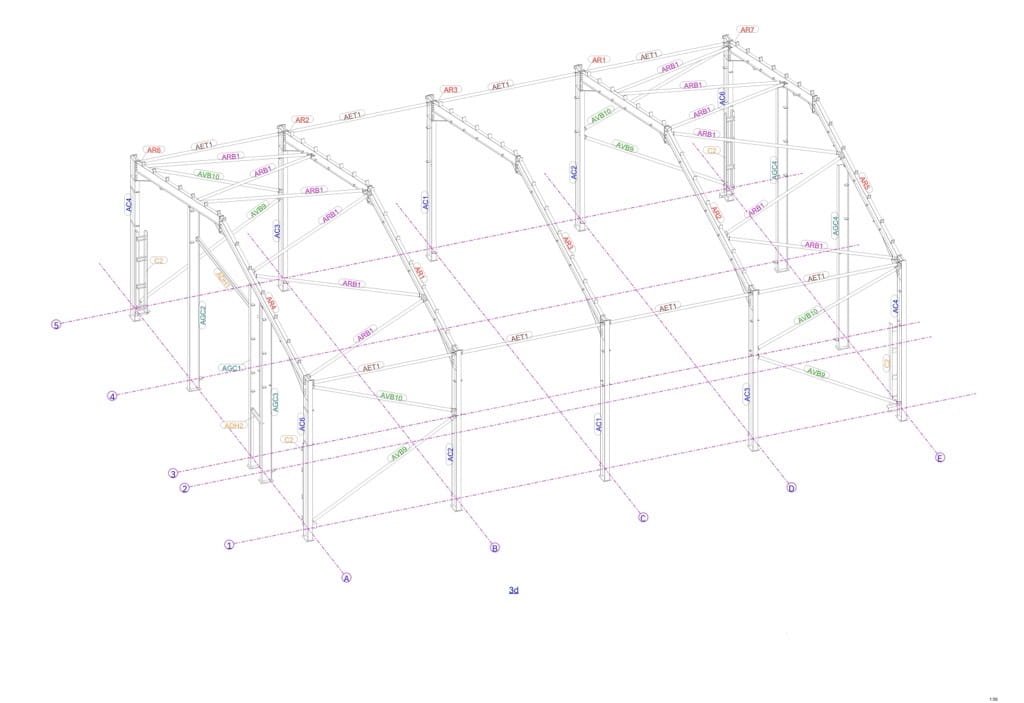

Steel Portal Frame:

To consist of 4 x 6.096m (20′) bays. Includes roof and side bracing on both ends and CHS eaves ties. All steel work to be galvanised.

Stanchions: 457 x 191 x 67kg UB

Rafters: 406 x 140 x 39kg UB

Gable End: 406 x 178 x 54kg UB

Purlins:

Includes all associated accessories, anti-sag bars, tie wires and side rail supports.

Purlins: P177 / 16 ‘Z’

Eaves Beams: E190 / 20

Side Sheeting Rails: P140 / 16 ‘Z’

Roof Cladding:

Cement Fibre 6R reinforced corrugated natural grey fibre cement sheets, including fibre cement ridge to be closed crown cranked and Plastisol coated steel barge flashings.

Roof Lights:

None required

Rainwater Goods:

170mm black PVC eaves gutters with 110mm black downpipes. All PVC gutters to have rubber sealed joints.

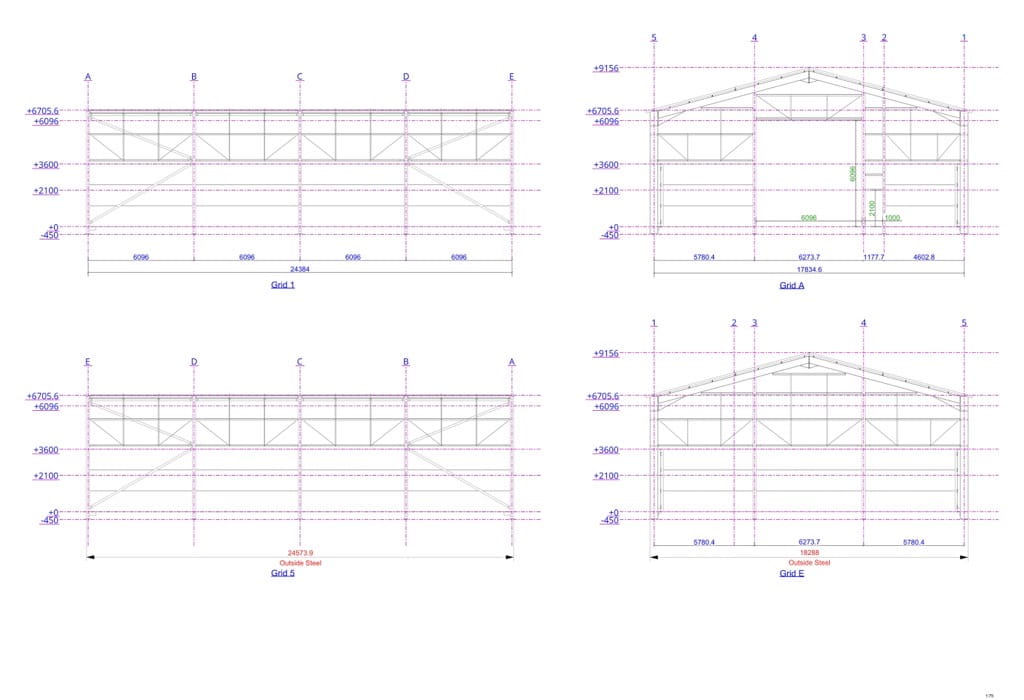

End Cladding:

Both gable ends to be clad down to 3.45m above finished floor level with 0.5mm Plastisol coated box profiled steel sheets complete with Plastisol coated steel flashings.

Side Cladding:

Both sides to be clad down to 3.45m above finished floor level with 0.5mm Plastisol coated box profiled steel sheets complete with Plastisol coated steel flashings.

Doors:

1 roller shutter door to suit openings of 6m wide x 6m high.

1 personnel door to suit openings of 1000mm wide x 2400mm high.

Concrete Panels:

3600mm high x 150mm thick.

£POA

Click below to contact us about this building, or if it’s not quite what your looking for we can quote for a custom building to your specifications.
